Arts Center in Charbonnières-les-Bains

  • Exterior view of Maison des Arts in Charbonnières-les-Bains, a stepped concrete and timber arts center above sports courts on a wooded valley slope.

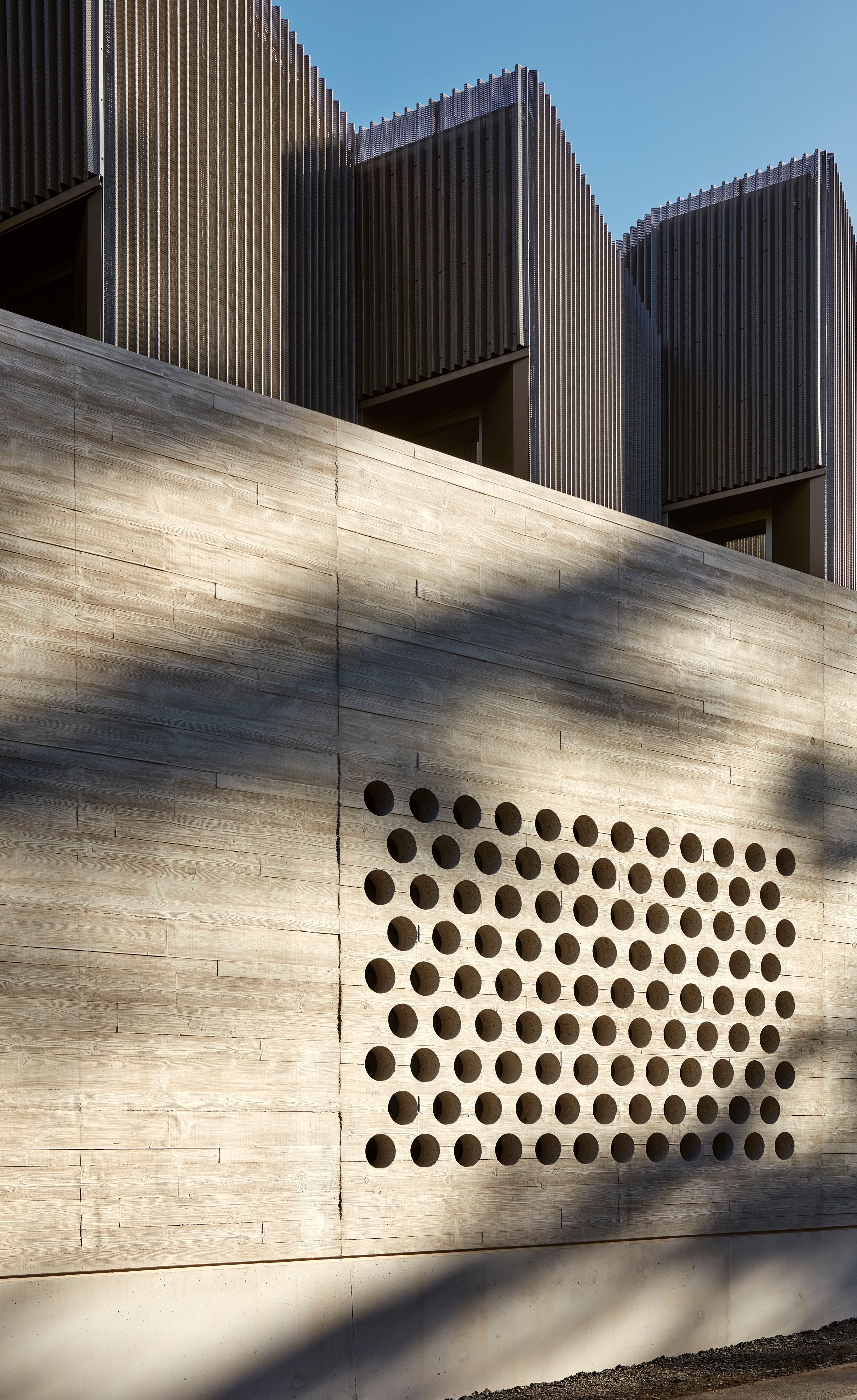

  • Exterior view of Maison des Arts in Charbonnières-les-Bains, showing the concrete base with large openings and perforations topped by a ribbed metal acoustic volume.
  • Entrance of Maison des Arts in Charbonnières-les-Bains, with a horizontal concrete canopy bearing the name and full-height glazed doors opening to the street.
  • Interior corridor of the Maison des Arts in Charbonnières-les-Bains, with glazed facade, timber framing, concrete wall and double-height circulation space.

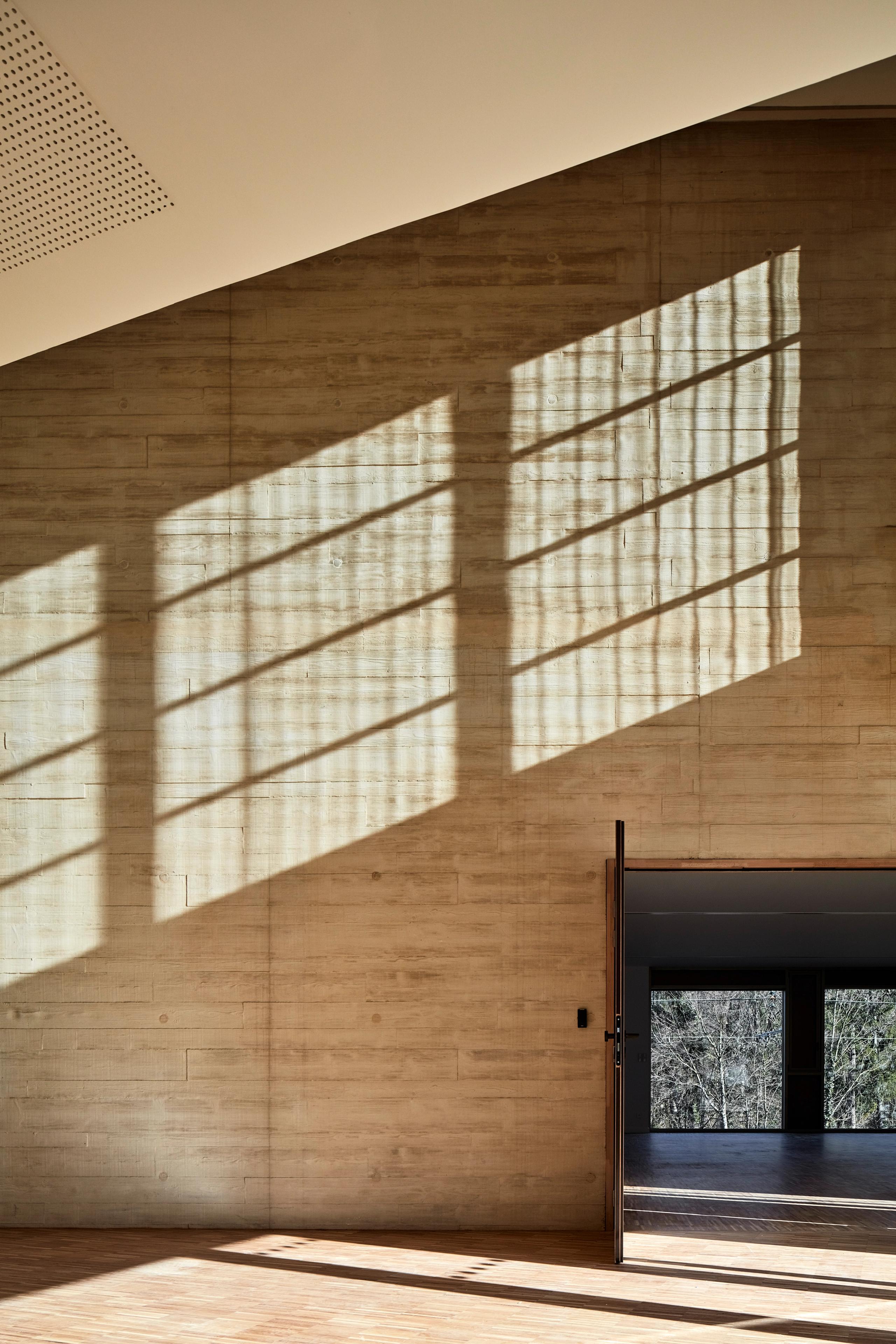

  • Interior view of Maison des Arts in Charbonnières-les-Bains, showing tiled circulation space with benches and hooks framed by a textured timber wall.
  • Interior view of a Maison des Arts dance studio in Charbonnières-les-Bains, with full-height glazing, mirrored wall and high clerestory windows.

Project description

The Maison des Arts is located on a constrained site, along a railway line, in a steep, wooded valley. The building is organised in three superimposed layers: a concrete base embedded in the ground houses the youth centre; an intermediate level in patterned concrete brings together the shared areas and dance studios; an upper timber volume clad in perforated metal is dedicated to music. Lighter and contrasting with the mass of the base, this upper volume with its complex geometry meets the acoustic requirements of the music programme and integrates into the landscape.

Project details

  • Address
    1 montée du Vieux Pont, Charbonnières-les-Bains, Rhône
  • Dates
    2017-2020
  • Programme
    Dance hall, 2 rehearsal rooms, 14 classrooms
  • Surface area
    1,289 m2
  • Budget
    2.7 M€
  • Regulatory framework
    RT 2012 – 50 %
  • Energy consumption
    73.9 kWh/m2/year
  • Labels
    E3C1, BBC Effinergie
  • Notable details
    Ground source heat pumps, photovoltaic, bio-based insulators
  • Selected media

Credits

  • Client
    Commune de Charbonnières-les-Bains
  • Lead architect
    Tectoniques (architect)
  • Project management
    Tectoniques Ingénieurs (cost consultant, MEP engineering, concrete structure), Arborescence (timber structure), eEgenie (sustainability consultant), Régéneration (landscape architect), DBVIB (acoustic consultant)
  • Photography
    Renaud Araud
