Restructuring and Reconstruction of the Pompidou Mourguet School Complex in Lyon

  • Site plan of the Pompidou Mourguet School Complex in Lyon, showing the new right-angled elementary wing, retained nursery, enclosed playgrounds and block-scale landscape.
    Site plan
    N
  • Axonometric drawing of the Pompidou Mourguet School Complex in Lyon, showing L-shaped masonry volumes enclosing planted playgrounds and covered walkways.
    Axonometric view
  • Ground floor plan of Pompidou Mourguet School complex in Lyon, showing existing nursery and new elementary wings enclosing landscaped playgrounds.
    ground floor plan
  • Plan view of the Pompidou Mourguet School complex in Lyon, showing L‑shaped masonry volumes enclosing playgrounds and shared circulation spaces.
    1st floor plan
  • Elevation drawing of Pompidou Mourguet School Complex in Lyon, showing masonry block base, timber–concrete upper volume and enclosed playground edge.
    gymnasium section
  • Longitudinal elevation of the Pompidou Mourguet School complex in Lyon, showing the new masonry block elementary wing aligned with the existing low nursery buildings.
    east elevation

Project description

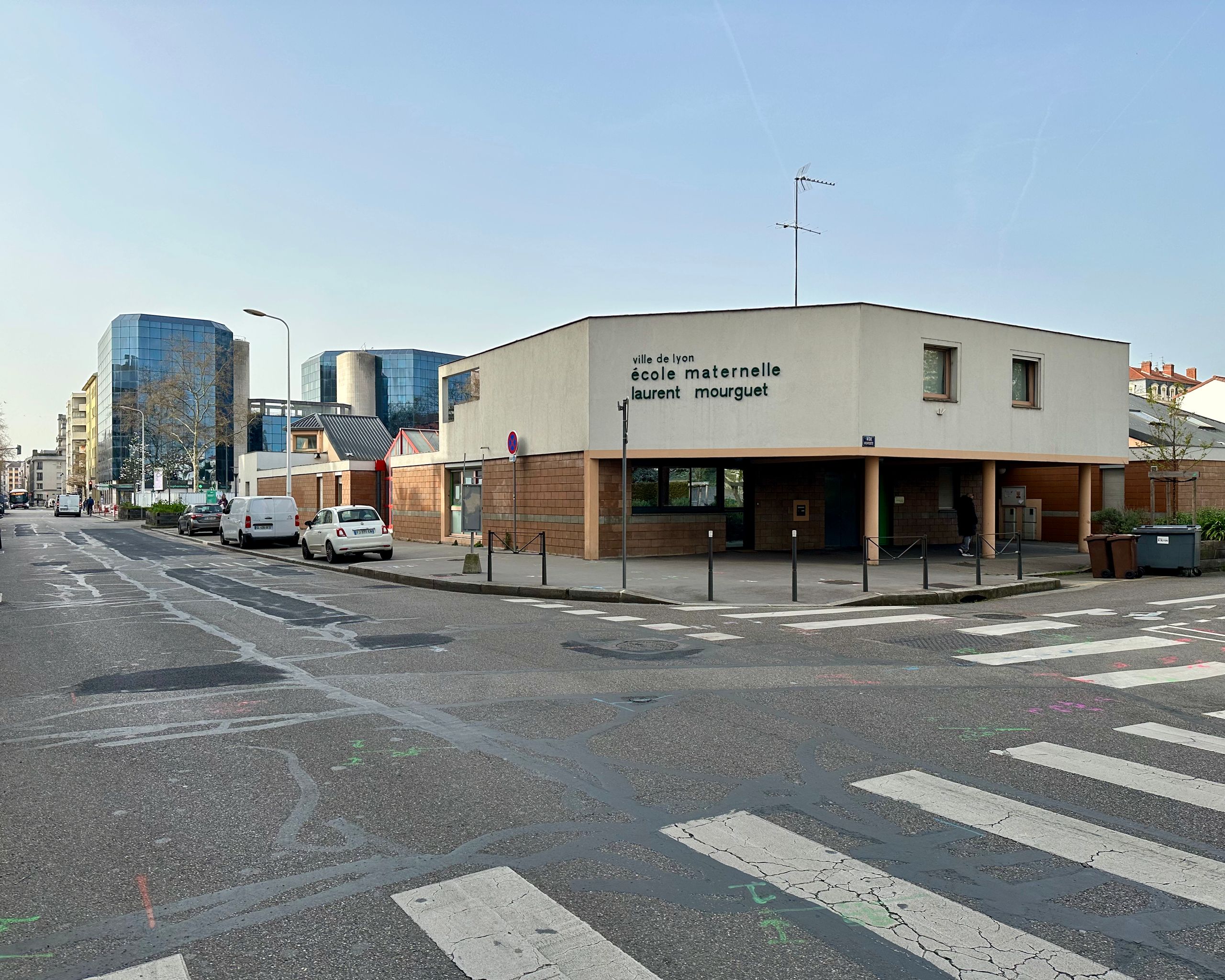

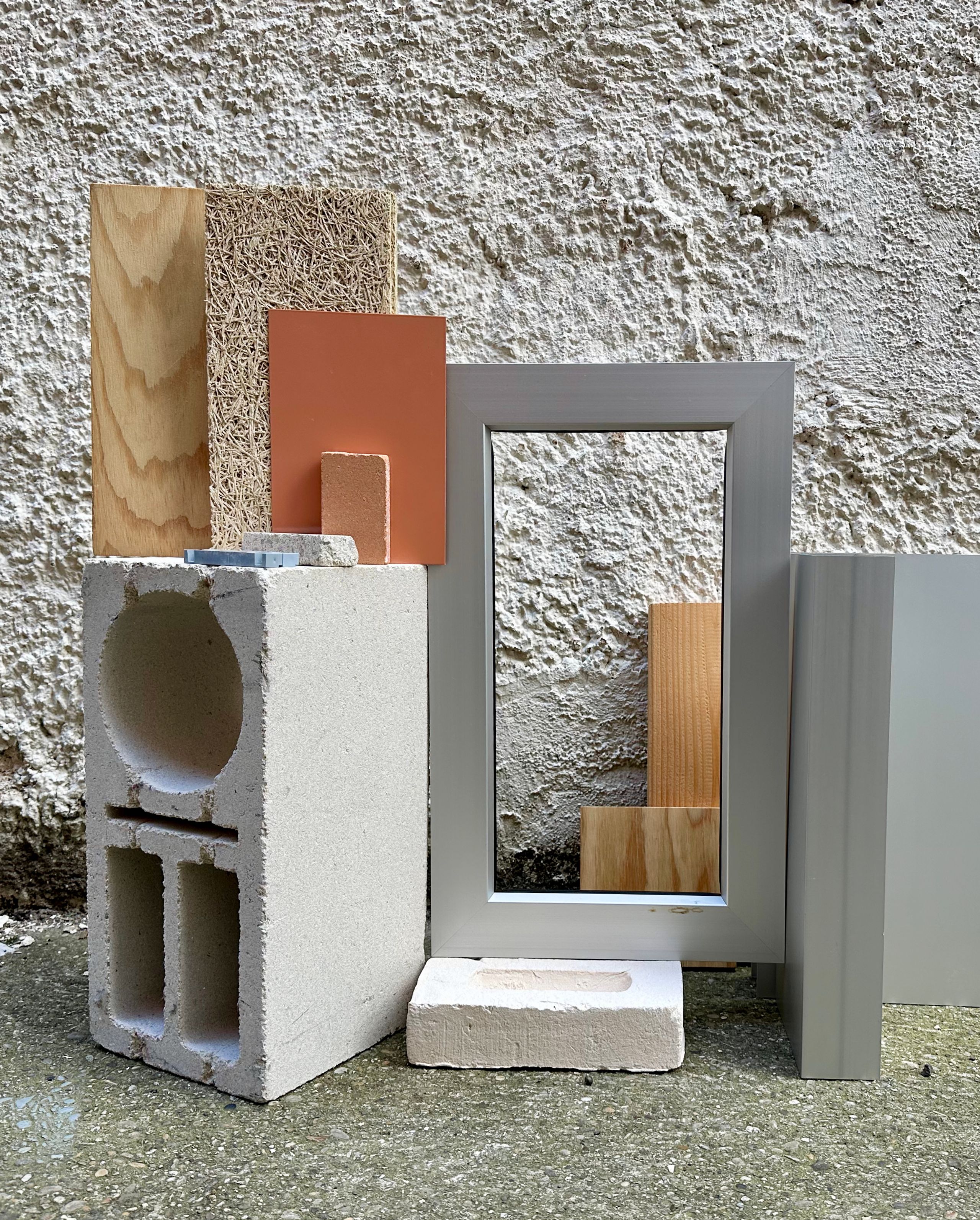

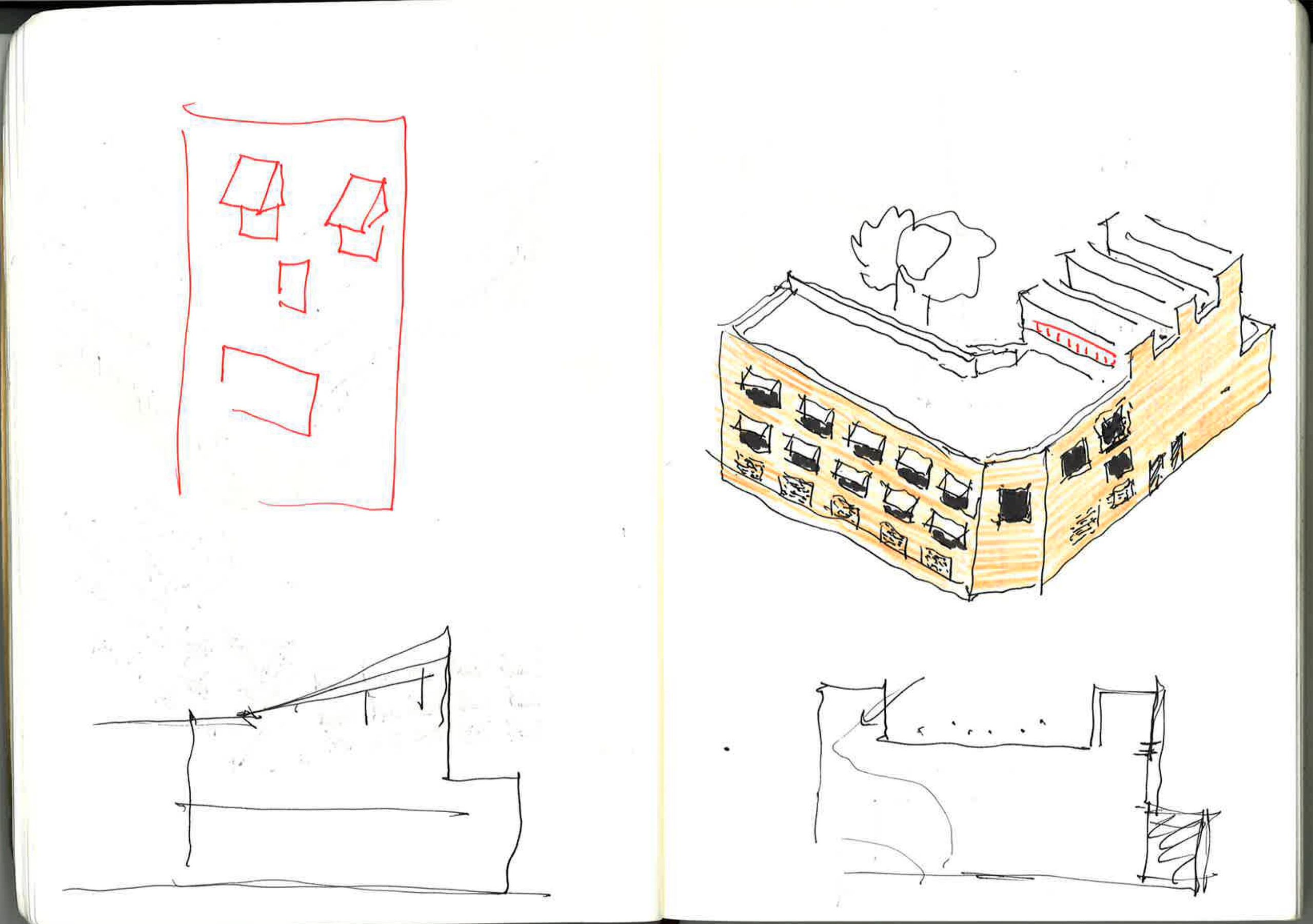

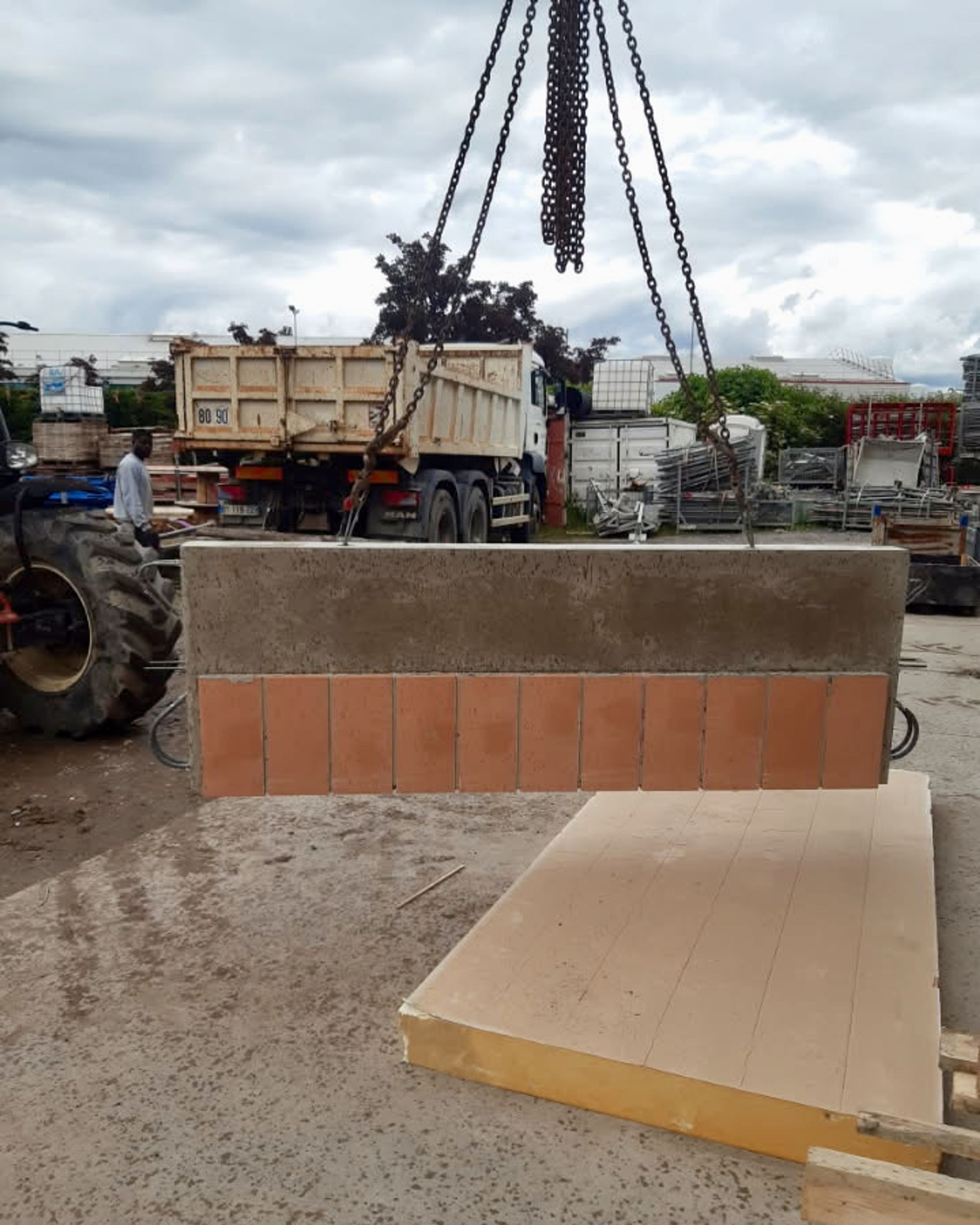

The new Pompidou elementary school is designed as a complementary element to the Mourguet nursery school, which is retained and renovated. The building is set at right angles on the street corner to form a protective enclosure around the playgrounds and to create a landscape at the scale of the block. The architecture is composed of simple volumes, built with masonry blocks and composite timber–concrete floor slabs. This hybrid approach combines the durability of a mineral façade with a reduction in the carbon footprint. The two-tone blocks establish a dialogue with the existing building and contribute to the coherence of the whole.

Project details

  • Address
    16 rue des Petites Soeurs, Lyon, Rhône
  • Dates
    Ongoing since 2023
  • Programme
    Renovation of 6 classrooms, medical unit, library, construction of 8 classrooms, activity rooms, multipurpose hall, gymnasium, 2 cafeterias and library
  • Surface area
    4,182 m2
  • Budget
    8.1 M€
  • Regulatory framework
    RE 2020 niveau 2028 – Cep – 20 %
  • Carbon emissions
    726 kgCO2eq/m2
  • Energy consumption
    60.7 kWh/m2/year
  • Notable details

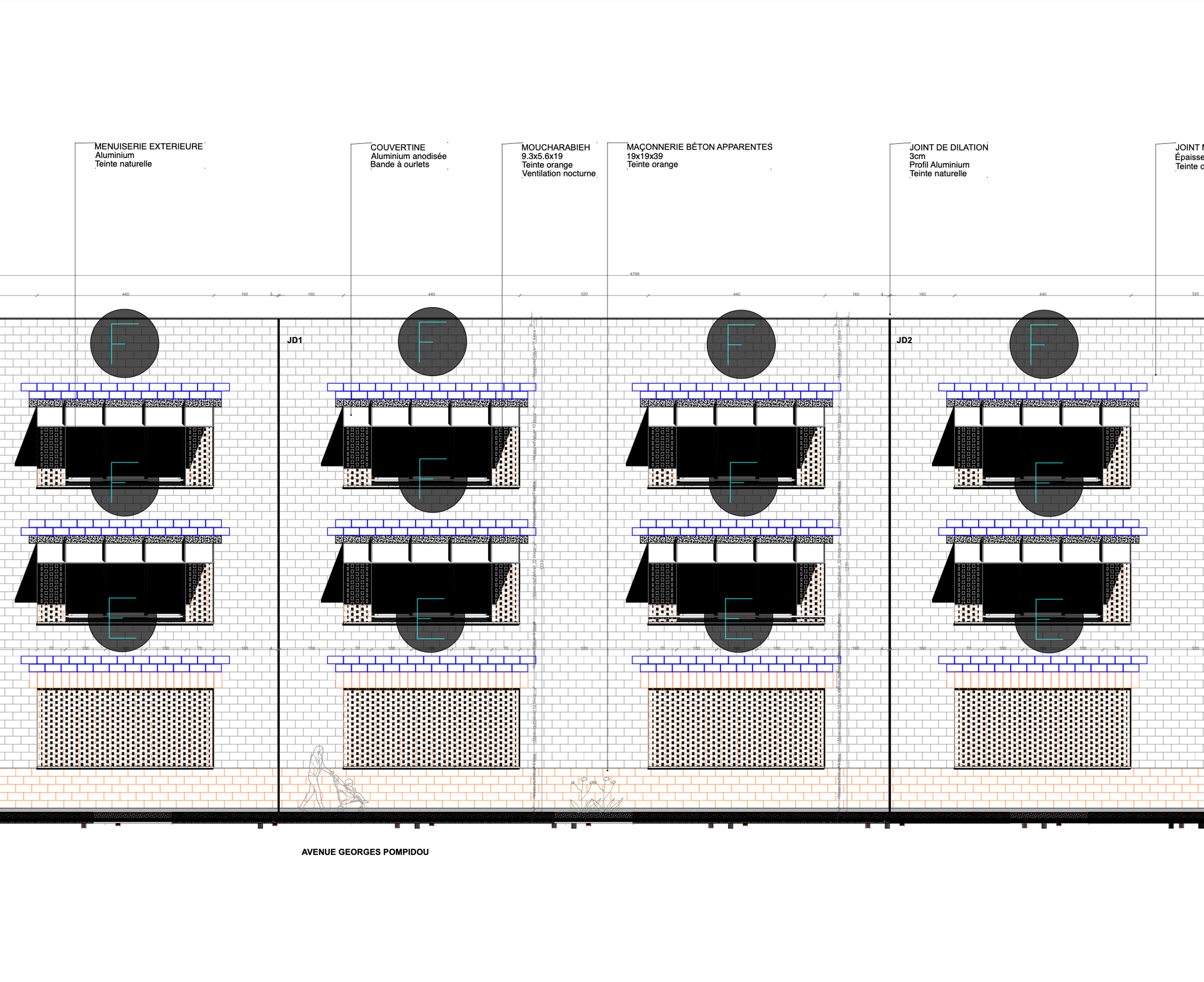

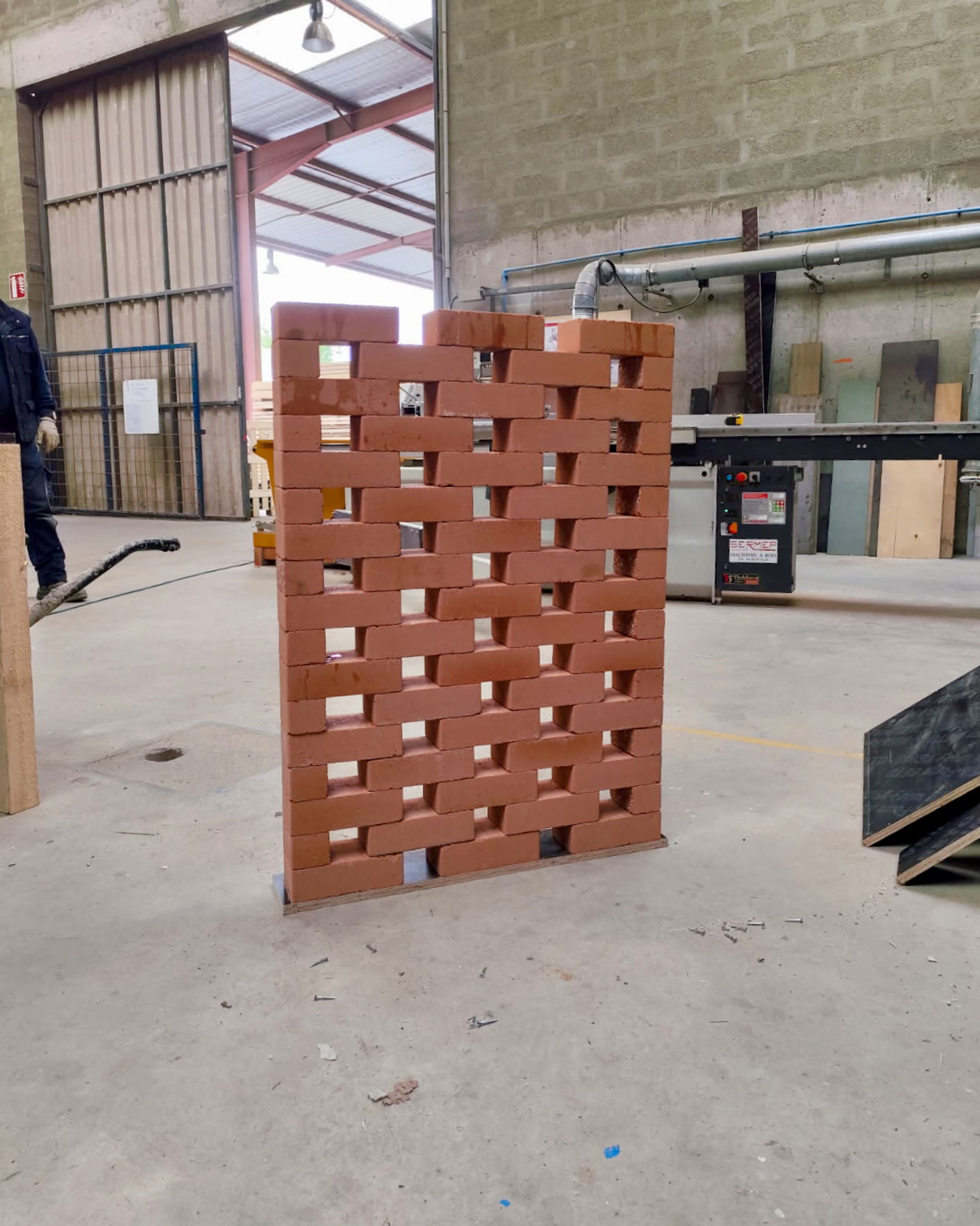

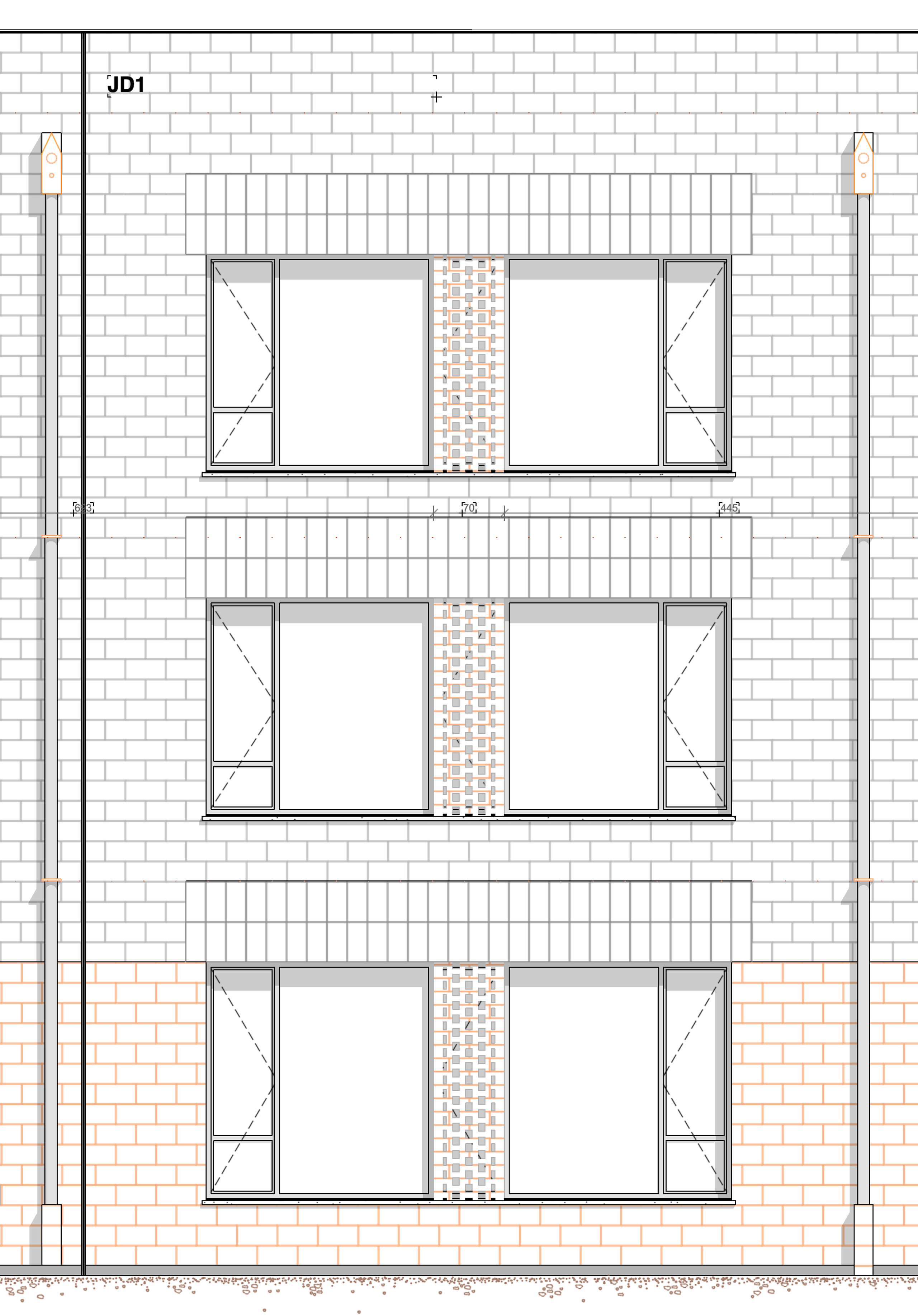

    Composite timber–concrete floors, masonry concrete block façade, photovoltaic panels, natural night over-ventilation

Credits

  • Client
    Ville de Lyon
  • Lead architect
    Tectoniques (architect)
  • Project management
    Tectoniques Ingénieurs (sustainability consultant, timber structure, concrete structure), Alto (electrical engineering, MEP engineering), Studis (roads and utilities), MRP (landscape architect)
