48 Housing Units, Student Residence and Frida Kahlo School Complex in Bordeaux

  • Tectoniques

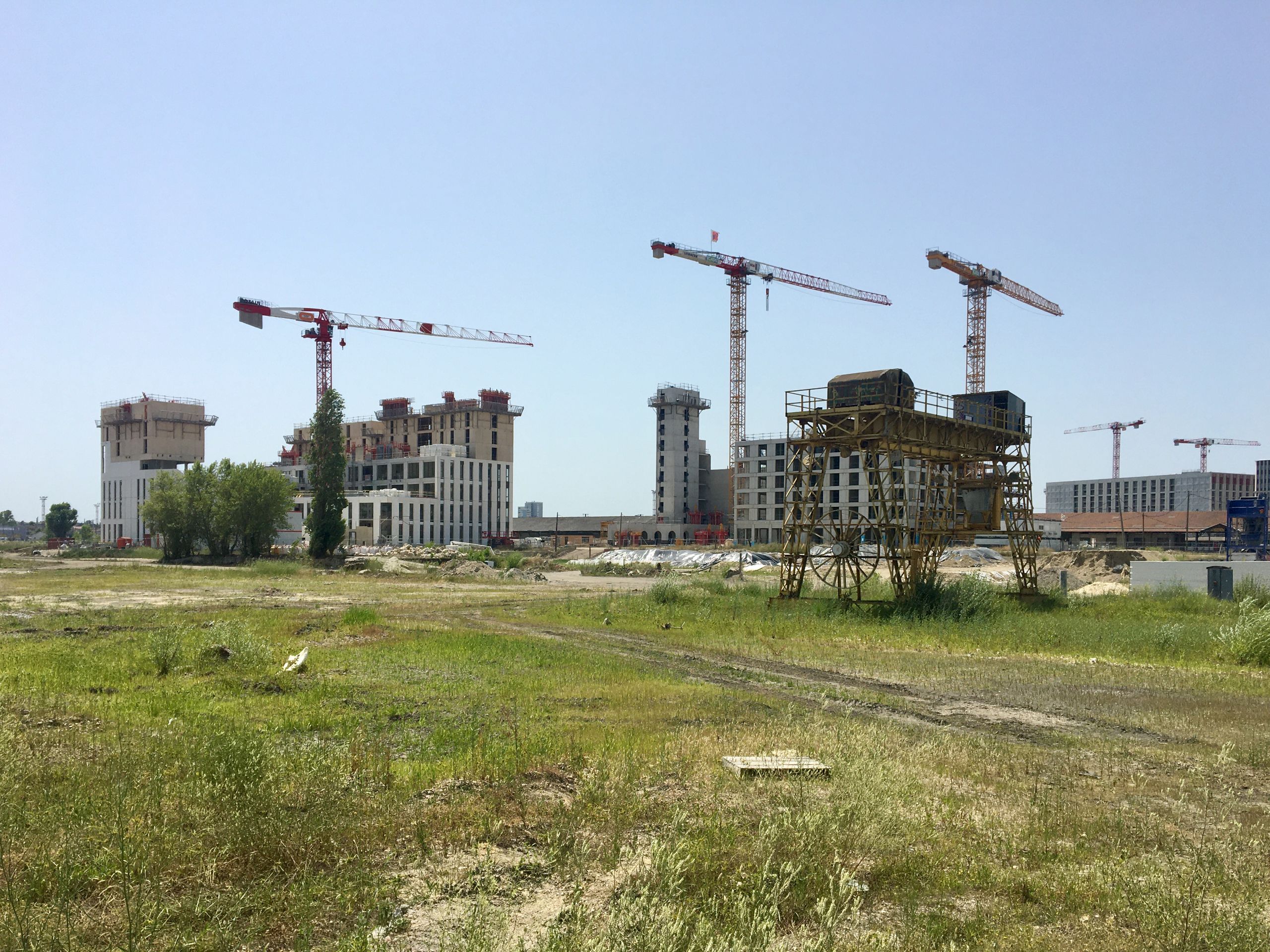

  • Construction site of the Mixed-Use Blocks in Bordeaux, with concrete frames, tower cranes and open ground foreground showing the urban redevelopment phase.
    Tectoniques

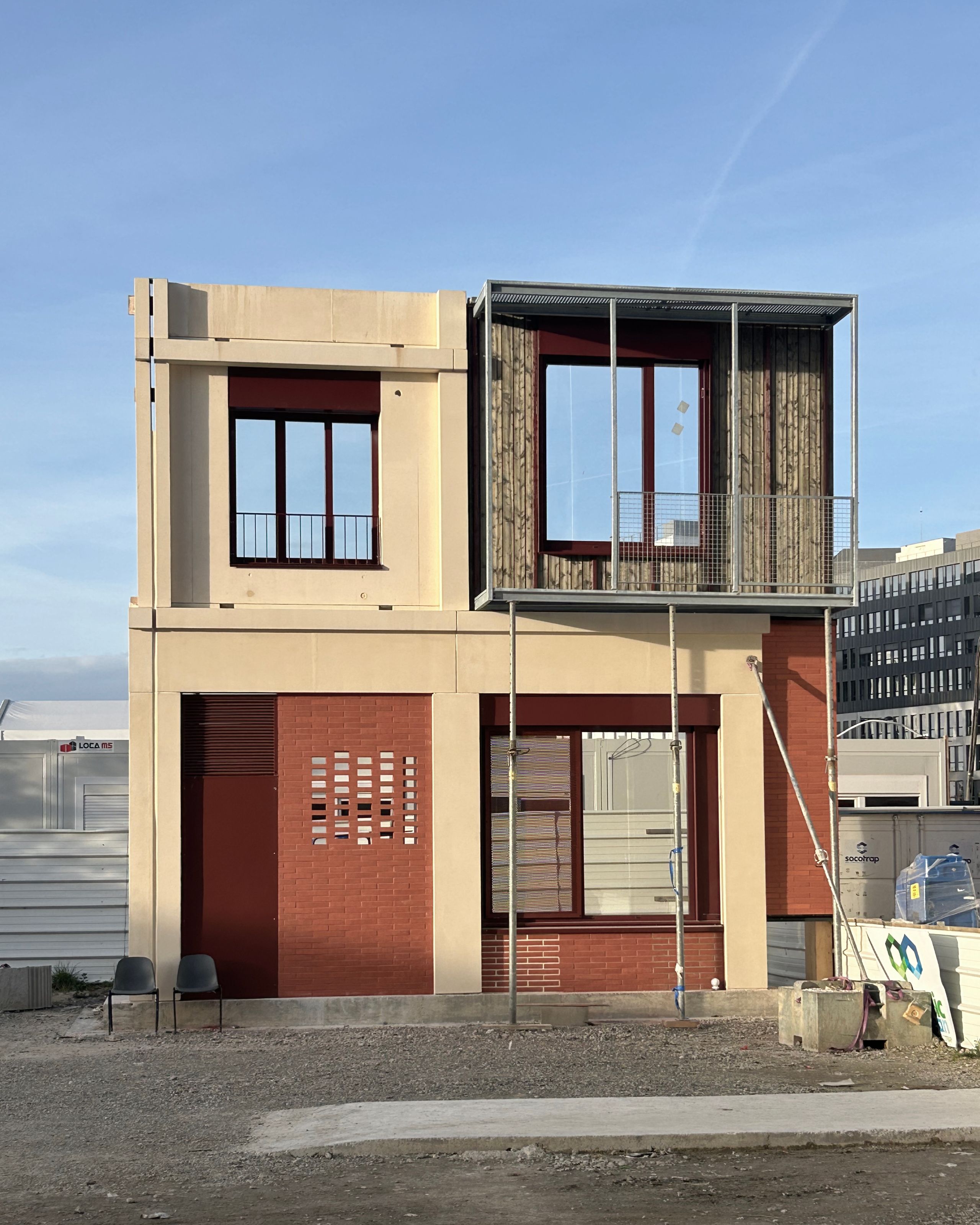

    Process mock-up for Mixed-Use Blocks in Bordeaux, showing two-storey facade with prefabricated concrete, red brick, metal frame loggia and large openings.
    Tectoniques
  • Perspective of Mixed-Use Blocks in Bordeaux, showing timber-clad mid-rise volumes opening onto a landscaped park with tall pines and active public spaces.
    Entre chien et loup
    Perspective of an outdoor basketball court in the Mixed-Use Blocks, Bordeaux, framed by metal fencing with timber-clad housing blocks in the background.
    Entre chien et loup
    Street-level view of Mixed-Use Blocks in Bordeaux, showing brick and timber façades with recessed loggias, planted base and tree-lined public walkway.
    Entre chien et loup

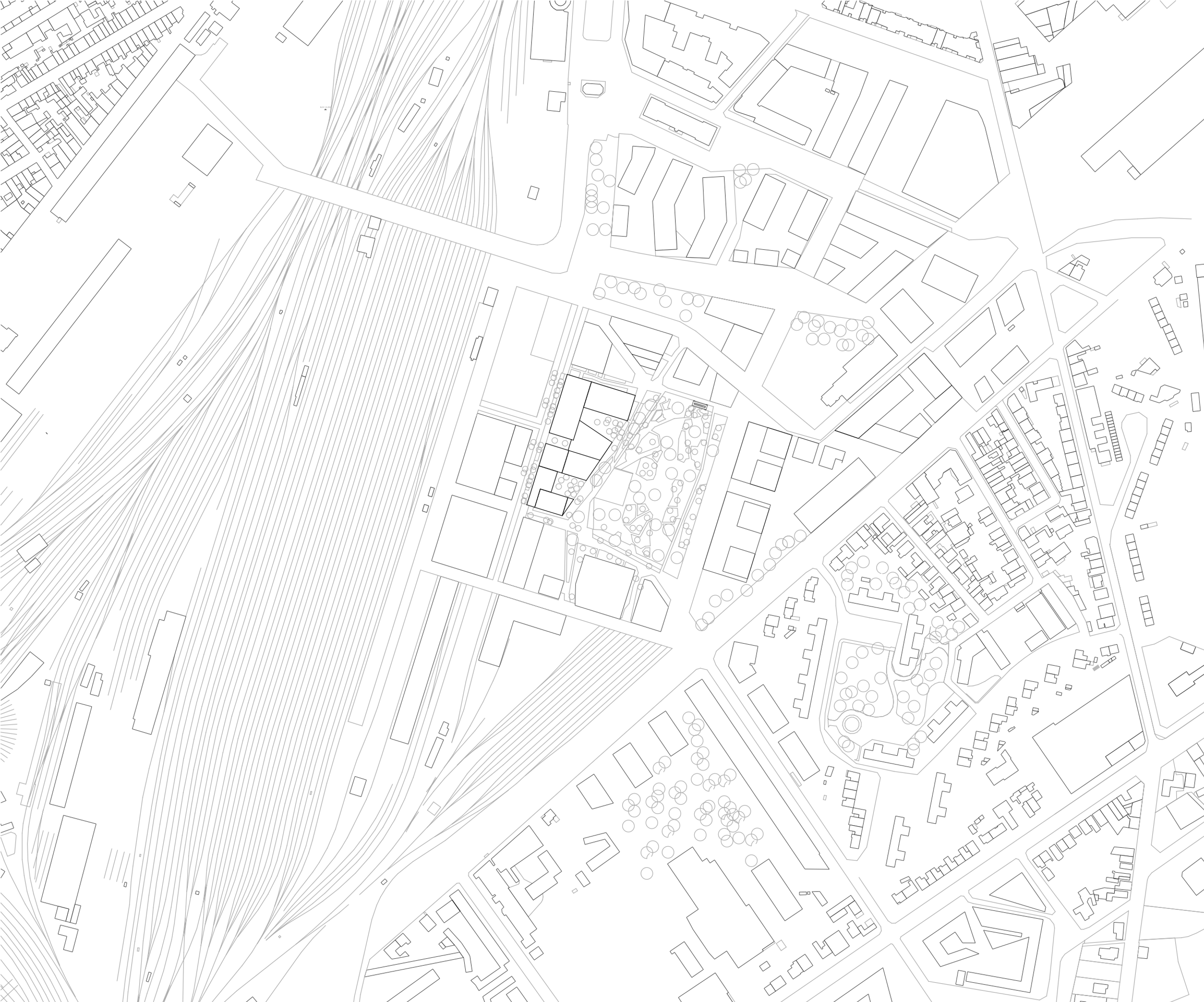

  • Site plan of the Mixed-Use Blocks in Bordeaux, showing compact urban blocks, public spaces and rail tracks integrated into the surrounding city fabric.

    Site plan

    N

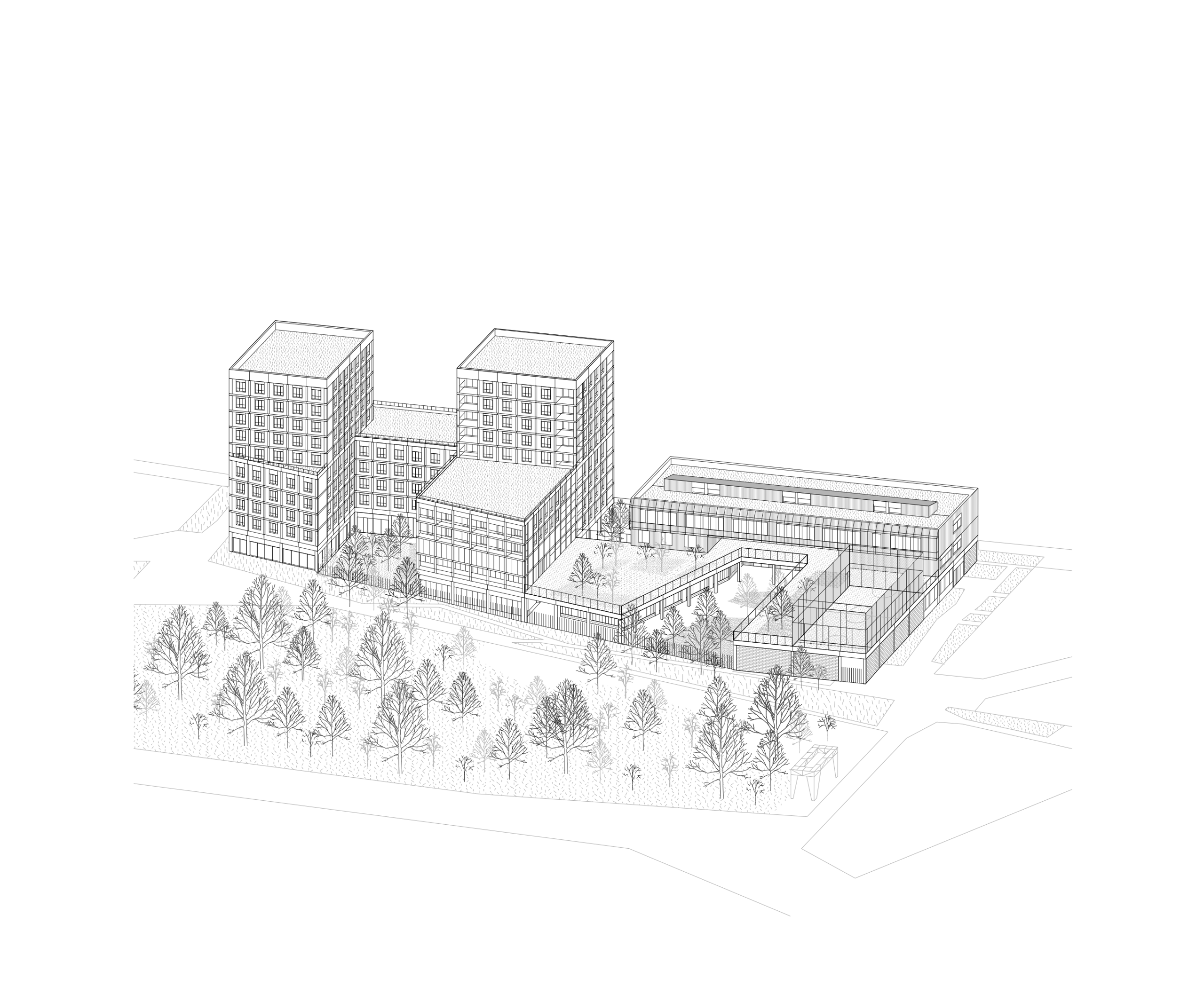

  • Axonometric drawing of Mixed-Use Blocks in Bordeaux, showing three tower volumes, a stepped courtyard podium, and a linear wing facing landscaped public space.

    Axonometric view

  • Ground floor plan of the Frida Kahlo School complex in Bordeaux, showing articulated school, housing and student residence volumes around planted courtyards.

    Ground floor plan

  • Ground floor plan of the Frida Kahlo School complex in Bordeaux, showing L-shaped housing and student residence wings framing courtyards and outdoor play areas.

    R+1 plan

  • Plan view of the Bordeaux Frida Kahlo School complex and housing, showing L-shaped and linear wings, circulation cores and landscaped courtyards.

    R+2 plan

  • Plan drawing of the Frida Kahlo School complex and housing in Bordeaux, showing L‑shaped residential wings, central circulation cores and landscaped courtyards.

    6th floor plan

  • Longitudinal elevation of the Bordeaux housing, student residence and Frida Kahlo School complex, showing stacked volumes, glazed bases and planted courtyards.

    est elevation

  • Longitudinal elevation of the Bordeaux housing, student residence and Frida Kahlo School complex, showing stepped volumes, regular grids and planted courtyard.

    ouest elevation

  • Elevation drawing of the Frida Kahlo School complex in Bordeaux, showing stacked volumes, student housing tower and planted edges facing the park.

    nord elevation

  • Elevation drawing of the Bordeaux housing, student residence and Frida Kahlo School complex, showing a regular grid façade above a transparent ground floor with trees.

    sud elevation

  • Axonometric detail of a prefabricated façade bay for the Bordeaux housing and Frida Kahlo School complex, showing window module, frame and structural joints.

    housing detail axonometric view

  • Axonometric façade section of the Bordeaux housing, student residence and Frida Kahlo School complex, showing prefabricated slabs, glazed bays and metal balconies.

    school building detail axonometric view

Project description

Block 8.10 is located in the Armagnac Sud district of Bordeaux Euratlantique. It combines a school complex, housing, and a student residence in a design that balances public access to the park with residential privacy. Vegetation extends to the heart of the block and the rooftops, creating a continuous landscape. The architecture accommodates the programmatic diversity through a unified design based on largely prefabricated construction systems.

Project details

  • Address
    26 rue Célestin Freinet, Bordeaux, Gironde
  • Dates
    Under construction since 2025
  • Programme
    48 housing units, 182 student rooms, school complex with 20 classrooms, cafeteria, sports centre
  • Surface area
    12,840 m2
  • Budget
    25 M€
  • Regulatory framework
    RE 2020 niveau 2025 – Cep – 30 %
  • Labels
    NF HQE Habitat 9*, Bâtiment frugal bordelais 2 feuilles
  • Notable details
    Photovoltaic pannels, bio-based insulation, low-carbon concrete, water-retention roof, timber structure and timber-frame façades for the public facility

Credits

  • Client
    Bouygues Immobilier
  • Project management
    Tectoniques (architect), Cobe (Construction scheduling and coordination), Land'act (landscape architect), Premières Bases (timber structure), Egis (multi-disciplinary engineering design phases), Passivea (sustainability consultant), Oteis (MEP building phase), Aïda (acoustic consultant), Cuisinorme (kitchen designer)
