84 Housing Units in Trévoux

  • 84 Housing Units in Trévoux with stepped timber-framed blocks, continuous external walkways and coloured balcony panels facing a landscaped park edge.
  • View of the 84 Housing Units in Trévoux, with stepped timber and concrete blocks, colored metal balconies, external walkways and landscaped central courtyard.
  • External access walkway of the 84 Housing Units in Trévoux, with timber decking, translucent canopy, green timber façade and yellow metal balustrades.
  • Interior of a 84 Housing Units flat in Trévoux, with timber-framed floor-to-ceiling glazing and balcony door opening to distant park and hills.
  • Timber external walkway of the 84 Housing Units in Trévoux, with yellow metal balustrades and cladding, framing distant views over the park landscape.
  • Interior of a 84 Housing Units flat in Trévoux with tiled floor, large timber-framed balcony doors, simple furnishings and open view to the landscape.
  • Timber-framed housing block in the 84 Housing Units project, Trévoux, with yellow balconies, red panels and planted foreground facing the park.
  • Timber-framed housing block in the 84 Housing Units project, Trévoux, with stacked balconies and vertical posts facing a public park lawn.

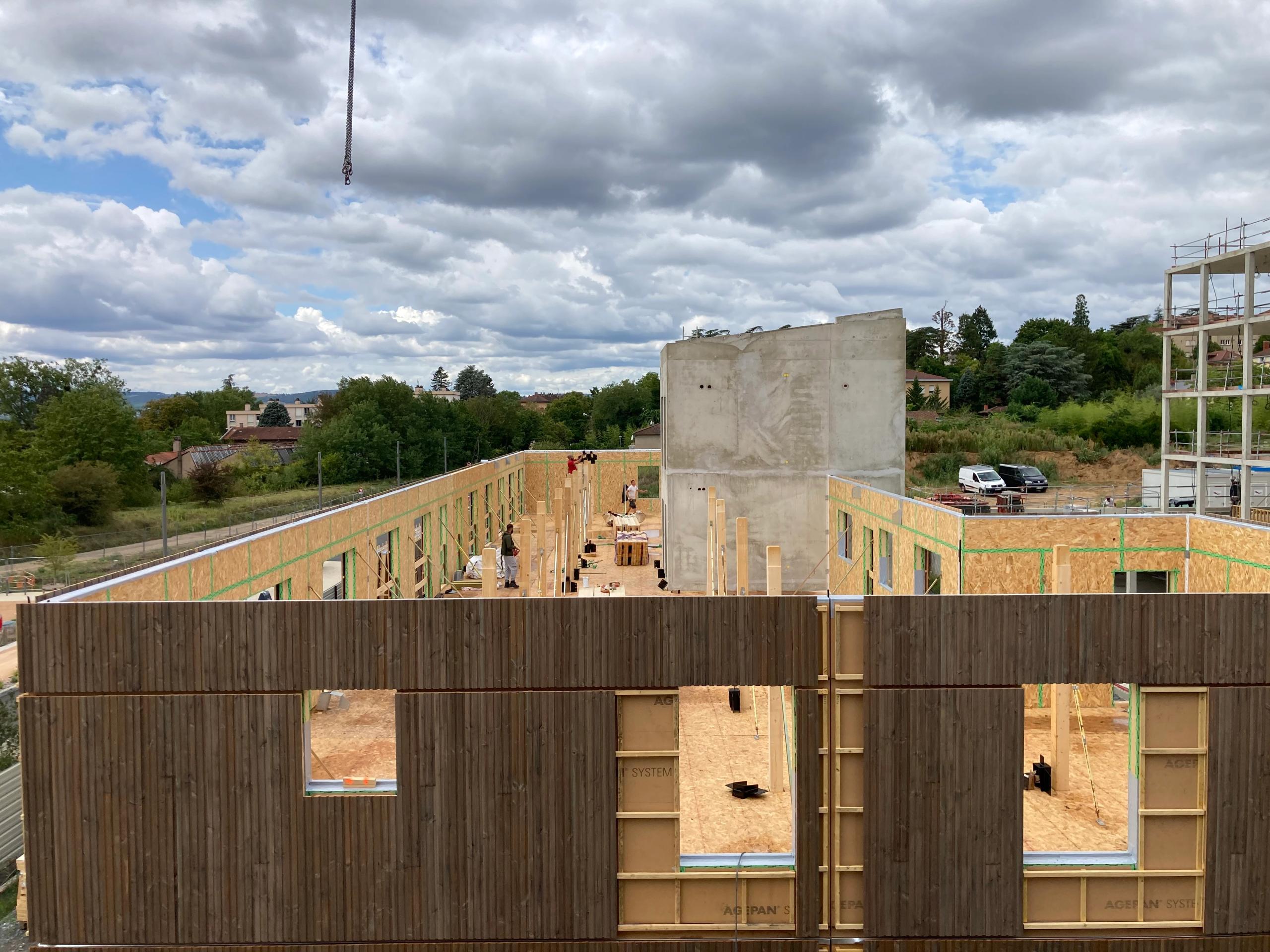

  • Aerial view of the 84 Housing Units in Trévoux under construction, showing stepped timber and concrete blocks with external walkways facing the park.
    Architectural model of the 84 Housing Units in Trévoux, showing a timber-framed façade with stacked balconies and coloured metal balustrades.
    Timber and hybrid structural model for the 84 Housing Units in Trévoux, showing stacked terraces, deep balconies and vertical timber-framed façades.
  • Site plan of Tectoniques’ 84 Housing Units in Trévoux, showing stepped linear blocks, central pedestrian spine and landscaped edges facing the public park.

    Site plan

    N
  • Axonometric drawing of the 84 Housing Units in Trévoux, showing stepped timber and hybrid blocks on a slope, external walkways and balcony-lined façades.

    Axonometric view

  • Site plan of the 84 Housing Units in Trévoux, showing four stepped residential blocks around landscaped courtyards, external walkways and parking along the park edge.

    ground floor plan

  • Floor plans of the 84 Housing Units in Trévoux, showing stepped linear blocks with external walkways and balconies forming dual- and triple-aspect dwellings.

    typical floor plan

  • Section drawing of 84 Housing Units in Trévoux, showing stepped timber and hybrid concrete structures on a sloping site with underground parking and park trees.

    transverse section

  • Front elevation of the 84 Housing Units in Trévoux, showing two stepped timber-framed blocks with regular balconies and trees along the park edge.

    south, south building elevation

  • Elevation drawing of 84 Housing Units in Trévoux, showing two stepped timber-framed blocks with external walkways, balconies and regular window grids.

    north, south building elevation

  • Elevation drawing of the 84 Housing Units in Trévoux, showing two stepped timber‑framed blocks with regular balconies, external walkways and park‑side trees.

    south, north building elevation

  • Elevation drawing of 84 Housing Units in Trévoux, stepped timber and hybrid volumes on a sloping park edge, with regular façades and external walkways.

    east elevation

Project description

Located on the edge of a public park, the project is organized as a fragmented composition adapted to the topography. The buildings, arranged in stepped terraces on the slope, optimize sunlight and views. Accessed via offset external walkways, the dwellings, either cross-ventilated or with triple orientation, are extended by generous balconies. The construction system, in timber or hybrid concrete column–slab with timber-frame façades, varies according to height to combine efficiency and cost control. The external timber structures and coloured metalwork give rhythm to the façades.

Project details

  • Address
    201 Allee Antoine Millan, Trévoux, Ain
  • Dates
    2021-2024
  • Programme
    84 housing units, 140 parking spaces, 49 cellars
  • Surface area
    6,123 m2
  • Budget
    10 M€
  • Regulatory framework
    RT 2012 – 20 %
  • Carbon emissions
    1,016 kgCO2eq/m2
  • Energy consumption
    67 kWh/m2/year
  • Labels
    E3C2, NF HQE Habitat
  • Notable details
    Timber frame walls, pellet wood boiler, green roof, concrete slab column
  • Selected media

Credits

  • Client
    Icade, REI
  • Lead architect
    Tectoniques (architect)
  • Project management
    Tectoniques Ingénieurs (cost consultant, MEP engineering, timber structure, concrete structure), Terre Eco (sustainability consultant), Leguillette (acoustic consultant), JCA développement (construction scheduling and coordination), Fondaconseil (geotechnical engineer), Axe Saône (landscape architect)
  • Photography
    Maxime Verret, Les Lumineurs, Tectoniques
